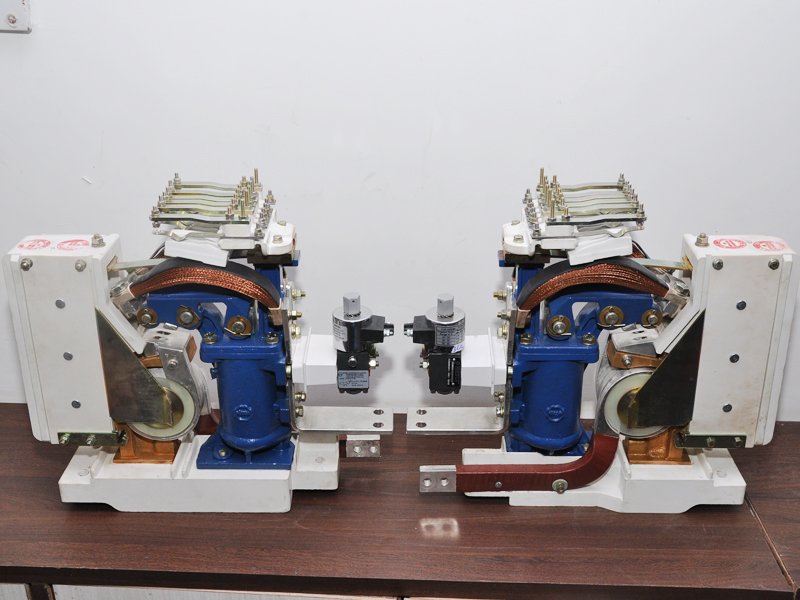

Electro Pneumatic Power Contactor

Electro pneumatic power contactor is used for opening and closing the electrical circuits. Nine numbers of such contactors are used for controlling the operation of traction motors.

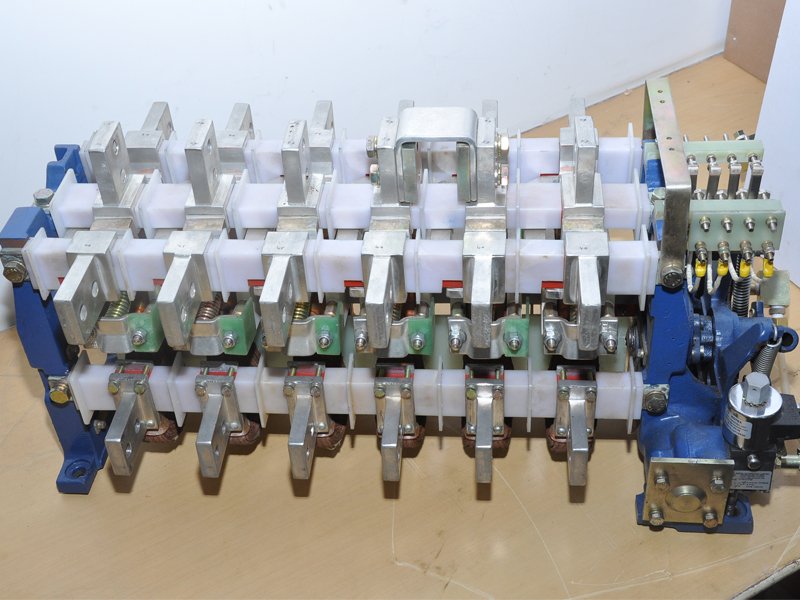

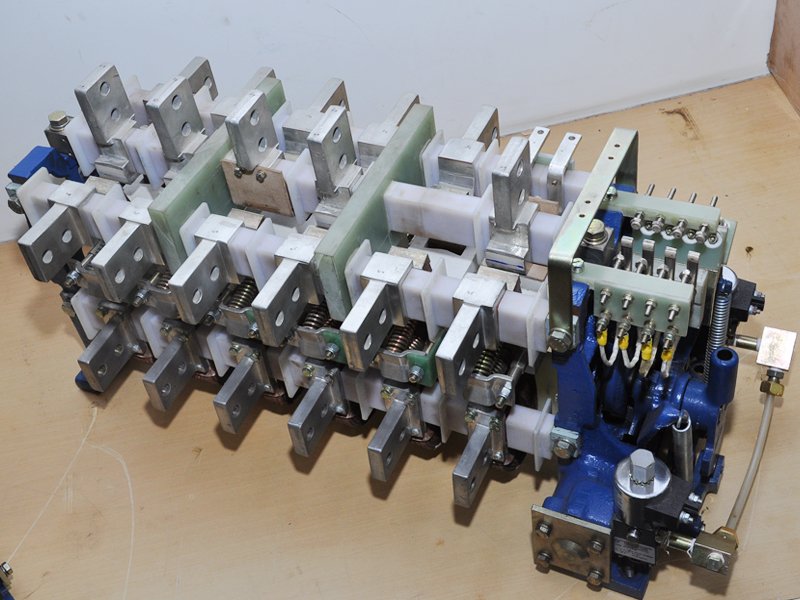

Electro Pneumatic Six Motor Reverser

The 6 Motor Reverser is remotely controlled offload operated Power Switch used forreversing the direction of rotation

Electro Pneumatic Six Motor Power Brake Switch

Rated Current : 1390 A DC
Rated Voltage: 1100 V DC
Duty : Continuous ...

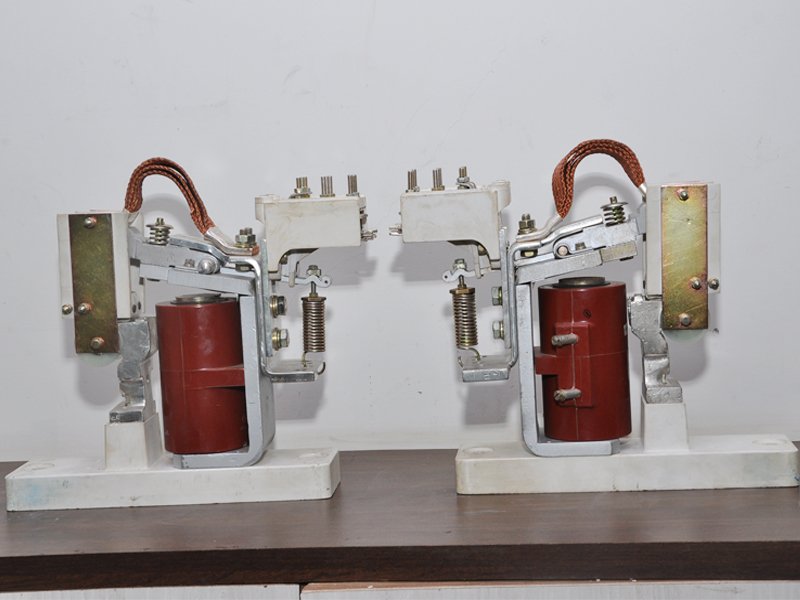

Electro Magnetic Field Shunting Contactor

These contactors are magnetically operated device used for opening and closing electrical circuits. The contactor is equipped

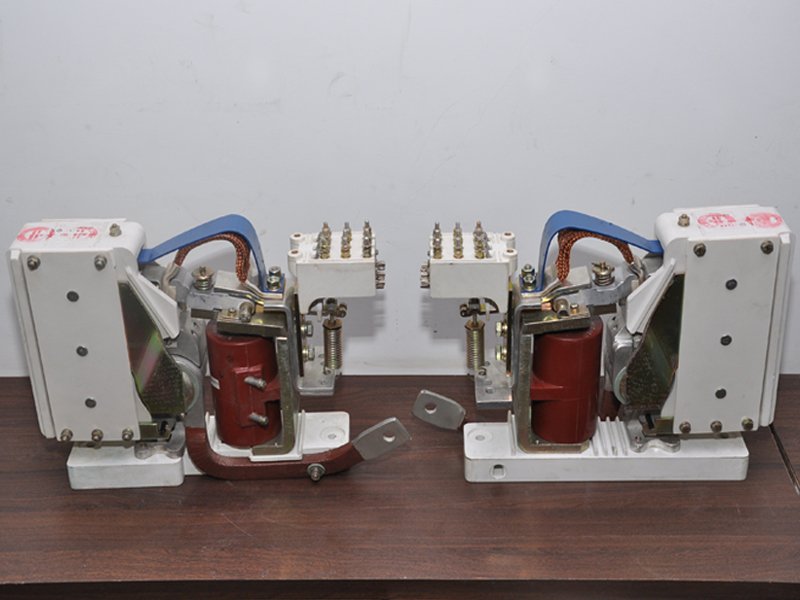

Electro Magnetic Generator Field Contactor

Contact Material : Cu (IS:613:2000) and Ag (99.9%)
Contact Gap : 12 to 14.5 mm
Contact Over Travel : 8 to 10mm

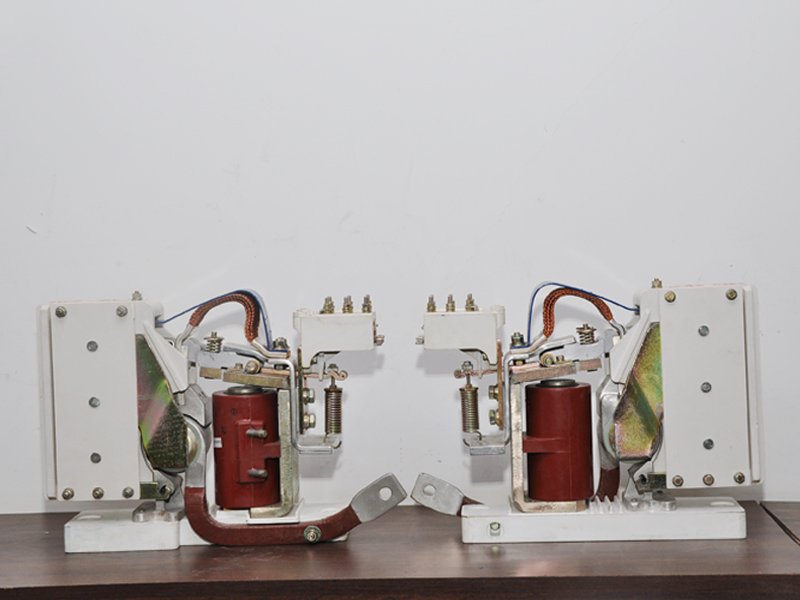

Electro Magnetic Cranking Contactor

Contact Material : Cu-W (50%-50%)
Contact Gap : 12 to 14.5 mm
Contact Over Travel : 8 to 10mm

Electro Magnetic Fuel Pump Contactor

Contact Material : Cu-Ag (CU-IS: 613-200 and Ag-99.9%)
Contact Gap : 11.0 to 13.0 mm
Contact Over Travel : 3.5 to 4.7 (for 6.8 to 8.0mm at "O" point )

Electro Magnetic Cranking Control Contactor

Contact Gap : 6 to 7.5 mm
Contact Over Travel : 0.8 to 1.60 mm
Maximum pick up voltage : 24 V DC

Electro Magnetic Radiator Fan Contactor

Contact Gap : 6 to 7.5 mm
Contact Over Travel : 0.8 to 1.60 mm
Maximum pick up voltage : 48 V DC

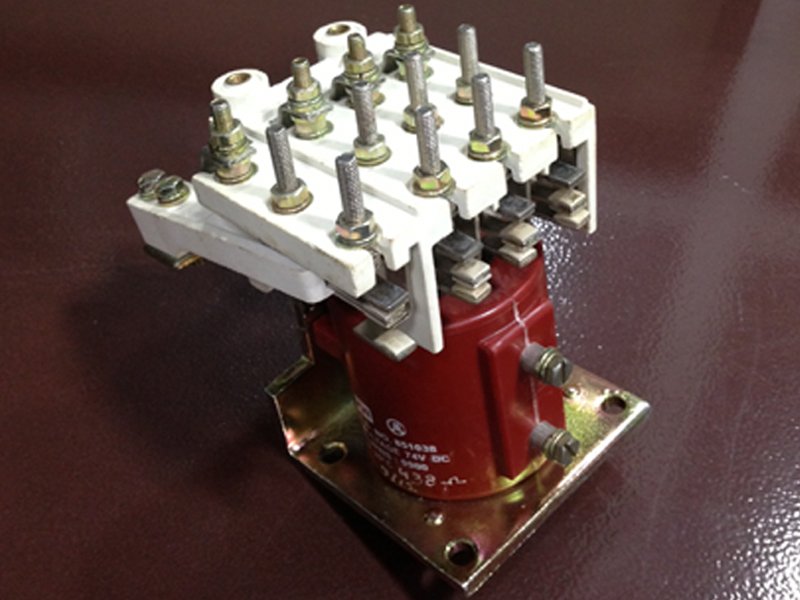

General Purpose Relay

The DC Electromagnetic General purpose relay controls various auxilliary circuits on diesel electric locomotives.

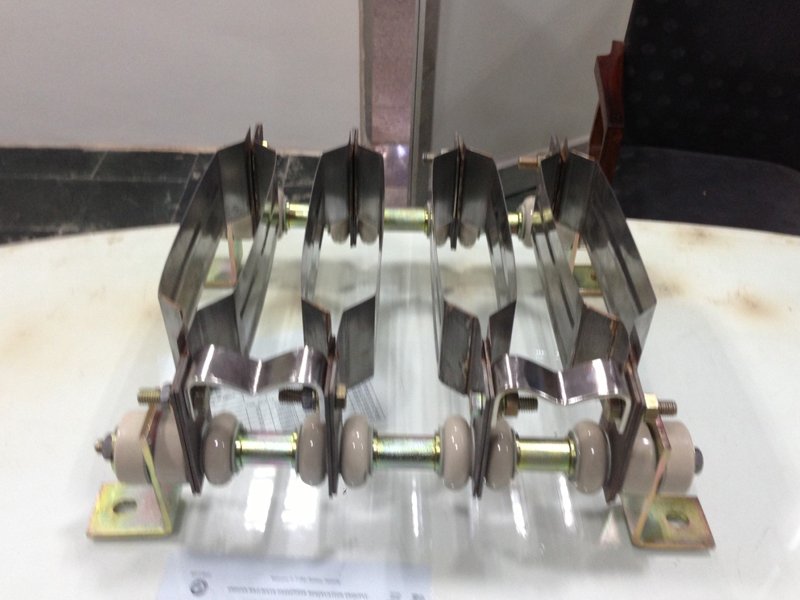

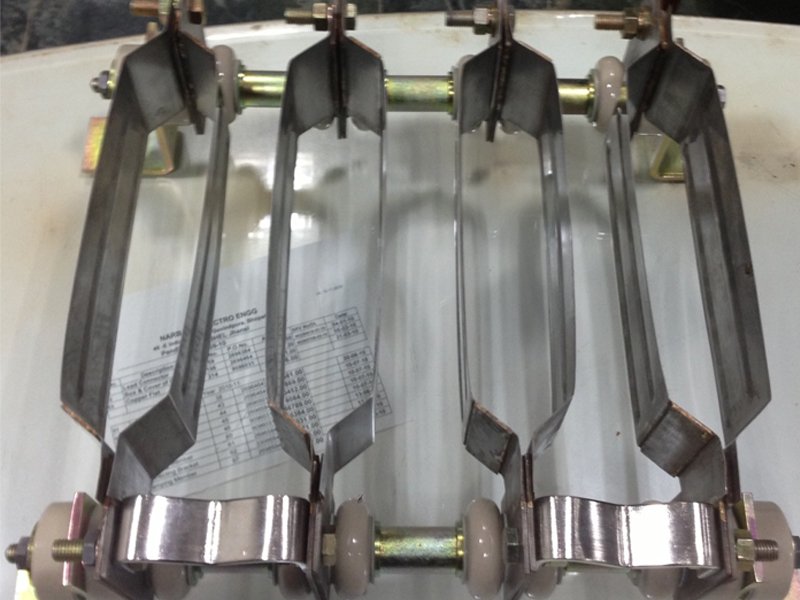

Field Shunting Resistor For BGDE

Field Diverter Resistors is the combination of RPS (Field Weakening Resistance) & RS (Shunting Resistance).

Field Shunting Resistor For MGDE

Description : Field Shunting Resistor For MGDE

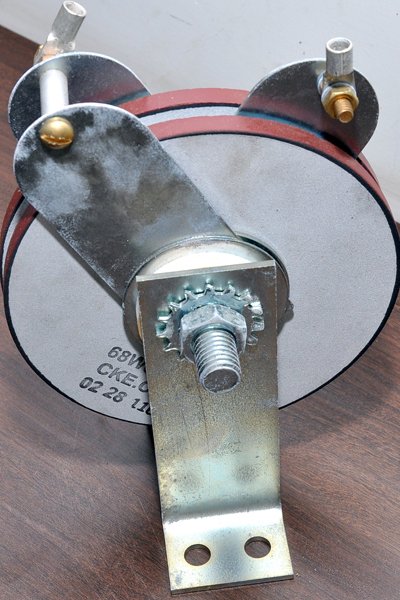

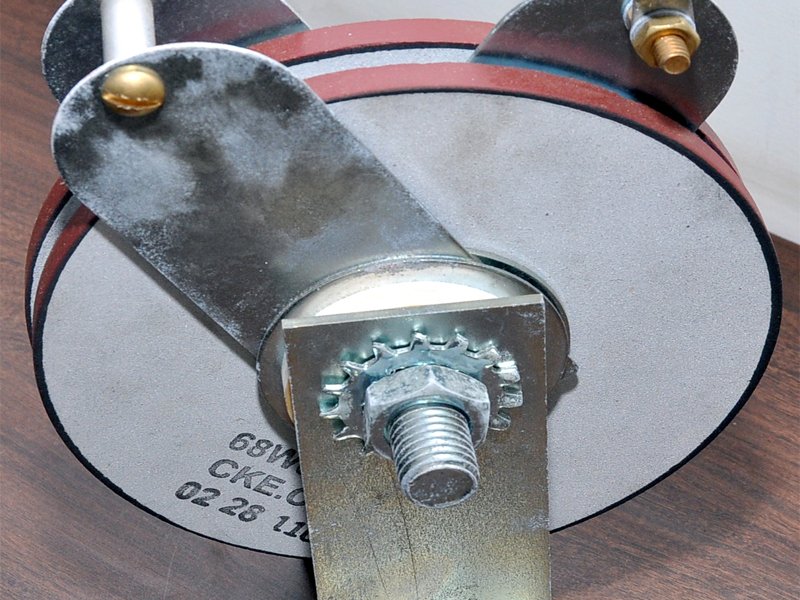

Thyrite Resistor
